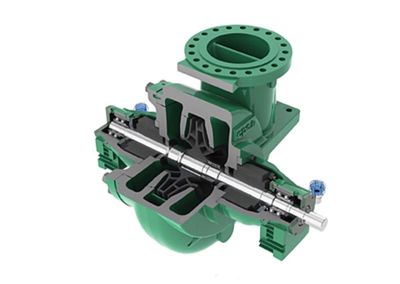

API 610 BB2 - Single Stage (Top/Top or Side/Side Nozzles arrangement)

•  Widest hydraulic coverage in the industry.

•  Application tailored hydraulic selections.

•  300# or 600# flange ratings, with top suction top discharge design casings.

•  Available in all API 610 Table H.1 materials.

•  Close clearance metalized carbon throat bushing for optimal control of stuffing box environment.

•  Rigid design shaft for minimal deflection to meet and exceed API 610 requirements.

•  Inpro/Seal bearing housing isolators.

•  Heavy Duty baseplate, drip rim or drip pan designs..

•  High pressure special casing design.

•  Oil Flinger/Oil Ring/Purge Mist/Pure Oil lubrication of bearings.

•  Oversized shafts and bearing housing arrangements.

•  Fan/Heat-sink bearing housing cooling arrangement for operation at elevated temperatures, to eliminate the need for cooling water.

•  Magnetic bearing housing isolators.

•  All bearing combination arrangements are available where suitable: Ball/Ball, Sleeve/Ball, Tilt Pad/Sleeve.

•  Flow rate in excess of 25,000 USGPM (5,700 m3/hr).

•  Differential heads up to 1,400 FT (425 m).

•  Temperatures up to 800 Deg. F (425 Deg. C)

•  Standard Design Working Pressure of 725 PSIG (5,000 kPag).

•  Higher pressure designs available.
